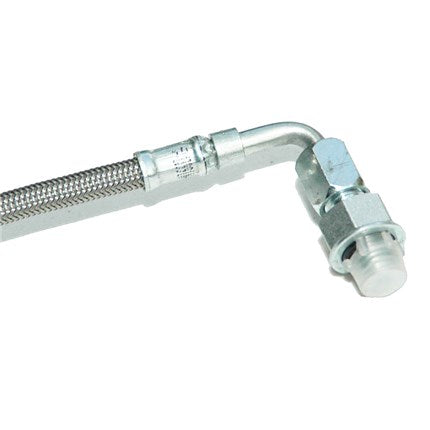

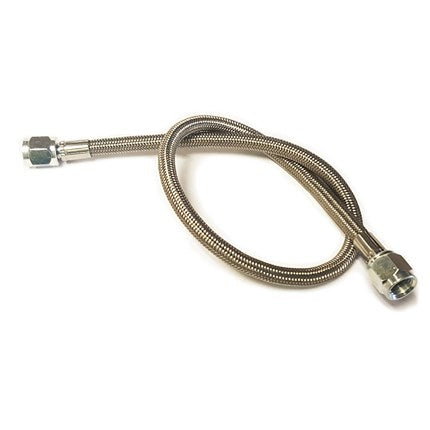

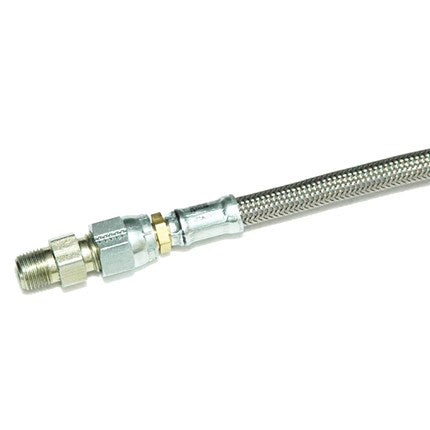

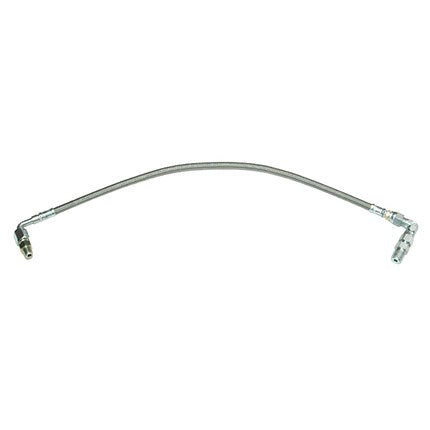

Stainless Diesel -6 Extreme Duty Turbo Oil Feed Line

: Universal

Complete with all inlet/ outlet fittings

• Dash 6 Extreme Duty High Pressure braided steel line (19.25" length for line only)

• 2 - 90* fittings
• 2 - M12 Oring fittings
• 1 - 1/4" NPT fitting
• 1 - 1/8" NPT fitting


2G Single Turbo Line:

• ONE END - comes with 1/8th" NPT to a male -6 JIC.
• OTHER END - -6 JIC to M12 O-ringed fitting.
• This line has 90-degree bend on one end & straight on the other end.

3G Single Turbo Line:

• ONE END - has M12 O-ringed to -6 JIC.
• OTHER END - has a -6 JIC to M12 o-ringed British standard thread.
• This line comes 90 degrees on both ends.

S400 Turbo Fitting Option:  Exchanges one of the M12 O-ringed fittings to -6 JIC fittings for a 1/4" NPT to -6 JIC fitting.

*(This listing describes 2 different lines with or without the S400 fitting option, please choose in the 'options' tab)

*M12 Fitting is the correct fitting for Holset Turbo
